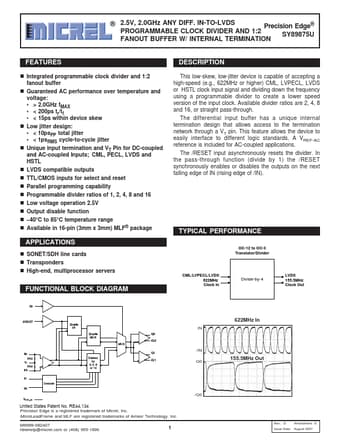

SY89875U Datasheet, Buffer, Micrel Semiconductor

SY89875U Features

• Buffer
• Integrated programmable clock divider and 1:2 fanout buffer
• Guaranteed AC performance over temperature and voltage:
• > 2.0GHz fMAX
• < 200ps tr/tf <

PDF File Details

Part number:

SY89875U

Manufacturer:

Micrel Semiconductor

File Size:

218.16kb

Download:

📄 Datasheet

Description:

In-to-lvds programmable clock divider and 1:2 fanout buffer. This low-skew, low-jitter device is capable of accepting a high-speed (e.g., 622MHz or higher) CML, LVPECL, LVDS or HSTL clock input

SY89875U Application

• Applications
• SONET/SDH line cards
• Transponders
• High-end, multiprocessor servers FUNCTIONAL BLOCK DIAGRAM DESCRIPTION
