PL585-28 Datasheet - Micrel

PL585-28 - 19MHz to 250MHz Low Phase-Noise VCXO

The PL585-28 is a Dual LC core monolithic IC clock, capable of maintaining sub-picoseconds RMS phase jitter, while covering a wide frequency output range up to 250MHz, without the use of external components.

The high performance and high frequency output is achieved using a low cost fundamental crys

(Preliminary) PL585-28 19MHz to 250MHz Low Phase-Noise VCXO FE AT UR E S < 0.6ps RMS phase jitter (12kHz to 20MHz) at 155.52MHz 30ps max peak to peak period jitter Ultra Low-Power Consumption < 90mA @155MHz PECL output <10A at Power Down (PDB) Mode Input Frequency: Fundamental Crystal: 19MHz to 40MHz Output Frequency: 19MHz to 250MHz output.

Output type: LVPECL High Linearity VCXO: <10% linearity Pullability: ±150 ppm

PL585-28 Features

* n Waffle Pack (Die) PL585-28WC ≤250MHz Wafer Micrel Inc., reserves the right to make changes in its products or specifications, or both at any time without notice. The in

PL585-28-Micrel.pdf

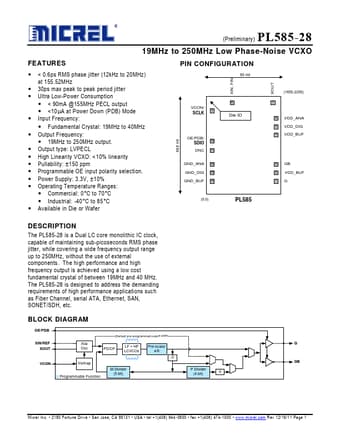

Preview of PL585-28 PDF
PL585-28 Datasheet Preview Page 2 PL585-28 Datasheet Preview Page 3

Datasheet Details

Part number:

PL585-28

Manufacturer:

Micrel

File Size:

330.65 KB

Description:

19mhz to 250mhz low phase-noise vcxo.
