PL586-05 - LVPECL VCXO

PL586-05 Description

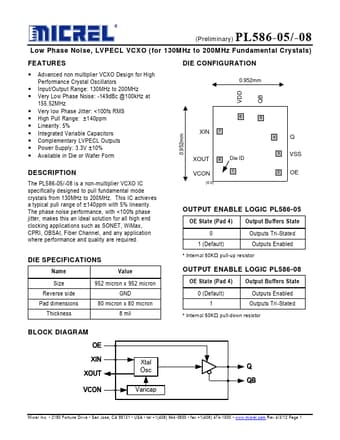

(Preliminary) PL586-05/-08 Low Phase Noise, LVPECL VCXO (for 130MHz to 200MHz Fundamental Crystals) FE AT UR E S * Advanced non multiplier VCXO D.
The PL586-05/-08 is a non-multiplier VCXO IC specifically designed to pull fundamental mode crystals from 130MHz to 200MHz.

PL586-05 Applications

* such as SONET, WiMax, CPRI, OBSAI, Fiber Channel, and any application where performance and quality are required. DIE SPECIFICATIONS Name Value Size Reverse side Pad dimensions Thickness 952 micron x 952 micron GND 80 micron x 80 micron 8 mil VCON (0,0) 1 2 OE OUTPUT ENABLE LOGIC PL586-05
