PL586-15 - (PL586-15/-18) LVPECL VCXO

PL586-15 Description

(Preliminary) PL586-15/-18 Low Phase Noise, LVPECL VCXO (for 75M Hz to 125M Hz Fundamental Crystals) .
The PL586-15/-18 is a non-multiplier VCXO IC specifically designed to pull fundamental mode crystals from 75MHz to 125MHz.

PL586-15 Features

* Advanced non multiplier VCXO Design for High Performance Crystal Oscillators Input/Output Range: 75MHz to 125MHz Very Low Phase Noise:

PL586-15 Applications

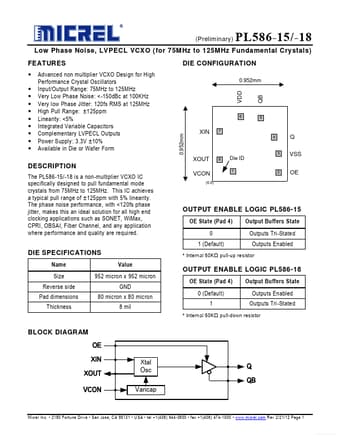

* such as SONET, WiMax, CPRI, OBSAI, Fiber Channel, and any application where performance and quality are required. VCON (0,0) OUTPUT ENABLE LOGIC PL586-15 OE State (Pad 4) 0 1 (Default) Output Buffers State Outputs Tri-Stated Outputs Enabled DIE SPECIFICATIONS Name Size Reverse side Pad dimensions

📥 Download Datasheet

Preview of PL586-15 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PL586-15
Manufacturer
Micrel
File Size
359.07 KB
Datasheet
PL586-15-Micrel.pdf
Description
(PL586-15/-18) LVPECL VCXO
