HV2621 - High-Voltage Analog Switch

HV2621 Description

HV2621/HV2721/HV2722 300V, Low-Charge Injection, 16-Channel, High-Voltage Analog Switch .
The HV2621/HV2721/HV2722 devices are 300V, low-charge injection, 16-channel, high-voltage analog switches.

HV2621 Features

* 300V,16-Channel High-Voltage Analog Switch
* 3.3V or 5.0V CMOS Input Logic Level
* 33 MHz Data Shift Clock Frequency
* Very Low Quiescent Current (10 µA)
* Low Parasitic Capacitance
* DC to 50 MHz Analog Small-Signal Frequency
* -60 dB Typica

HV2621 Applications

* Medical Ultrasound Imaging
* Nondestructive Testing (NDT) Metal Flaw Detection
* Multi-Layer Printed Circuit Board (PCB) Tester
* Piezoelectric Transducer Drivers
* Inkjet Printer Head

📥 Download Datasheet

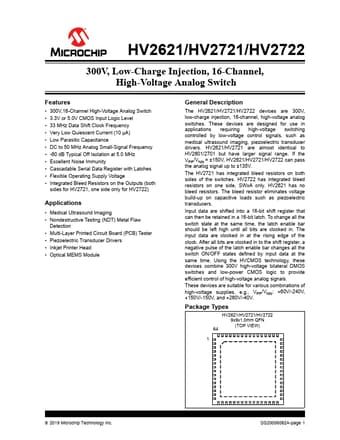

Preview of HV2621 PDF
