HV264 - Amplifer Array

HV264 Description

Supertex inc.Quad, High Voltage, Amplifier Array .
The Supertex HV264 is a quad high voltage amplifier array integrated circuit.

HV264 Features

* Four independent high voltage amplifiers 190V output swing 9.0V/µs typical output slew rate Fixed gain of 66.7V/V High value internal feedback resistors Very low operating current

HV264 Applications

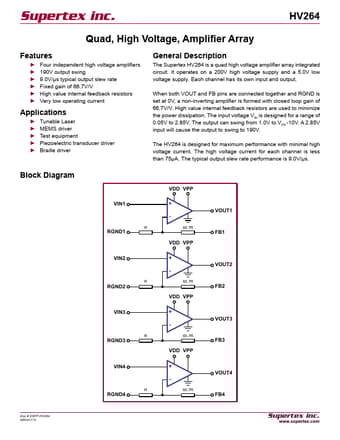

* Block Diagram VDD VPP VIN1 + - VOUT1 65.7R RGND1 R http://www. DataSheet4U. net/ FB1 VDD VPP VIN2 + - VOUT2 65.7R RGND2 R FB2 VDD VPP VIN3 + - VOUT3 65.7R RGND3 R FB3 VDD VPP VIN4 + - VOUT4 65.7R RGND4 R FB4 Doc. # DSFP-HV264 NR041713 Supertex inc. www. supertex. com datasheet
