HV2631

High Voltage Analog Switch

HV2631 Features

* HVCMOS® technology for high performance

* 220V operating conditions

* 22Ω typical output on-resistance

* 3.3 and 5.0V CMOS logic compatibility

* Very low quiescent power dissipation (-10µA)

* -45dB min off isolation at 7.5MHz

* Low parasitic capacitance

* Excellent

HV2631 General Description

The Supertex HV2631 is a 220V, 16-channel, high voltage analog switch integrated circuit (IC). The output switches are configured as 2 sets of 8 single pole, single throw, analog switches. The IC is intended to be used in applications requiring high voltage switching controlled by low voltage control.

HV2631 Datasheet (407.77 KB)

Preview of HV2631 PDF

Datasheet Details

Part number:

HV2631

Manufacturer:

Supertex

File Size:

407.77 KB

Description:

High voltage analog switch.

📁 Related Datasheet

HV2601 Low Charge Injection 16-Channel High Voltage Analog Switch (Supertex)

HV2601 High-Voltage Analog Switch (Microchip)

HV2605 16-Channel Low Harmonic Distortion High-Voltage Analog Switches (Microchip)

HV2605 Low Harmonic Distortion 16-Channel High Voltage Analog Switch (Supertex)

HV2607 High-Voltage Analog Switch (Microchip)

HV260WX1-100 TFT LCD (BOE)

HV2621 High-Voltage Analog Switch (Microchip)

HV264 Amplifer Array (Supertex)

HV2661 Low Charge Injection 24-Channel High Voltage Analog Switch (Supertex)

HV2662 24-Channel SPST High Voltage Analog Switch (Microchip)

TAGS

HV2631 High Voltage Analog Switch Supertex

Image Gallery

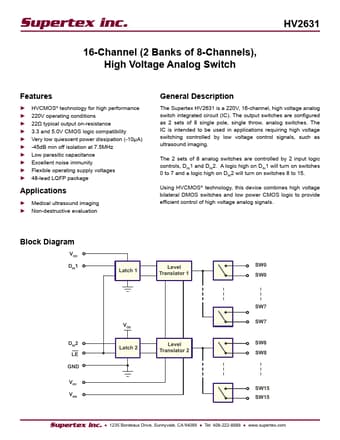

HV2631 Datasheet Preview Page 2 HV2631 Datasheet Preview Page 3
