HV2662

24-Channel SPST High Voltage Analog Switch

HV2662 Features

* 24-Channel of High-Voltage Analog Switch

* 3.3V or 5.0V CMOS Input Logic Level

* 24-Channel SPST Configuration

* 20 MHz Data Shift Clock Frequency

* HVCMOS Technology for High Performance

* Very Low Quiescent Power Dissipation (~10 µA)

* Low

HV2662 General Description

HV2662/HV2762 are low-charge injection, low harmonic distortion, 24-channel, high-voltage analog switch integrated circuits (ICs). These ICs excel in applications requiring high-voltage switching controlled by low-voltage control signals, such as medical ultrasound imaging, piezoelectric transducer .

HV2662 Datasheet (752.54 KB)

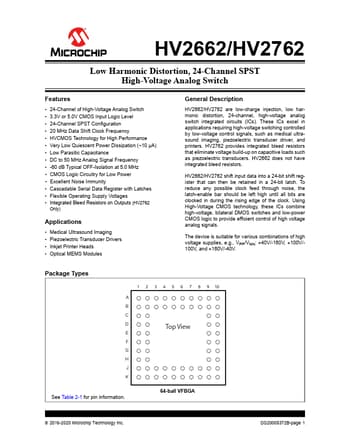

Preview of HV2662 PDF

Datasheet Details

Part number:

HV2662

Manufacturer:

Microchip ↗

File Size:

752.54 KB

Description:

24-channel spst high voltage analog switch.
