HV2601

Low Charge Injection 16-Channel High Voltage Analog Switch

HV2601 Features

* HVCMOS technology for high performance

* 16-channel high voltage analog switch

* 3.3V input logic level compatible

* 20MHz data shift clock frequency

* Very low quiescent power dissipation (-10µA)

* Low parasitic capacitance

* DC to 50

HV2601 General Description

The Supertex HV2601 is a low charge injection 16-channel high voltage analog switch integrated circuit (IC) intended for use in applications requiring high voltage switching controlled by low voltage control signals, such as medical ultrasound imaging and other piezoelectric transducer drivers. Inpu.

HV2601 Datasheet (584.87 KB)

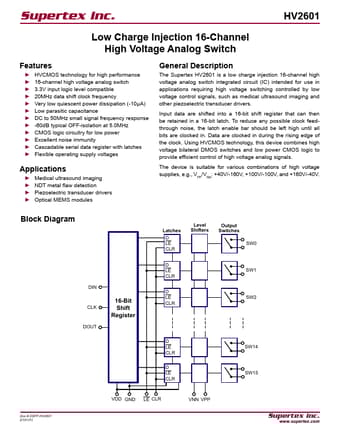

Preview of HV2601 PDF

Datasheet Details

Part number:

HV2601

Manufacturer:

Supertex

File Size:

584.87 KB

Description:

Low charge injection 16-channel high voltage analog switch.
