SY100ELT23L Datasheet, Translator, Microchip

SY100ELT23L Features

  • Translator
  • 3.3V Power Supply
  • 2.0 ns Typical Propagation Delay
  • <300 ps Typical Within-Device Skew
  • Differential LVPECL Inputs
  • 24 mA LVTTL Outputs

PDF File Details

Part number:

SY100ELT23L

Manufacturer:

Microchip ↗

File Size:

703.40kb

Download:

📄 Datasheet

Description:

3.3v dual differential lvpecl-to-lvttl translator. The SY100ELT23L is a dual differential LVPECL-to-LVTTL translator with +3.3V power supply. Because LVPECL (low voltage positive ECL)

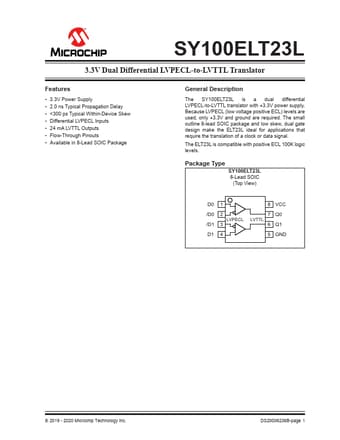

Datasheet Preview: SY100ELT23L 📥 Download PDF (703.40kb)
Page 2 of SY100ELT23L Page 3 of SY100ELT23L

SY100ELT23L Application

  • Applications that require the translation of a clock or data signal. The ELT23L is compatible with positive ECL 100K logic levels. Package Type SY10
