SY100ELT22 - DUAL TTL-to-DIFFERENTIAL PECL TRANSLATOR

Datasheet Summary

Description

The SY10/100ELT22 are dual TTL-to-differential PECL translators.

Because PECL (Positive ECL) levels are used, only +5V and ground are required.

Features

  • 300ps typical propagation delay.

📥 Download Datasheet

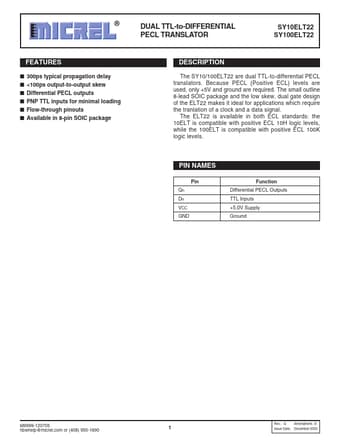

Datasheet preview – SY100ELT22

Datasheet Details

Part number SY100ELT22
Manufacturer Micrel Semiconductor
File Size 103.27 KB
Description DUAL TTL-to-DIFFERENTIAL PECL TRANSLATOR
