TC1187 - CMOS LDOs

TC1187 Description

TC1070/TC1071/TC1187 50 mA, 100 mA and 150 mA Adjustable CMOS LDOs with Shutdown .
The TC1070, TC1071 and TC1187 devices are adjustable LDOs designed to supersede a variety of older (bipolar) voltage regulators.

TC1187 Features

* 50 µA Ground Current for Longer Battery Life
* Adjustable Output Voltage
* Very Low Dropout Voltage
* Choice of 50 mA (TC1070), 100 mA (TC1071) and 150 mA (TC1187) Output
* Power-Saving Shutdown mode
* Overcurrent and Overtemperature Protection

TC1187 Applications

* Battery Operated Systems
* Portable Computers
* Medical Instruments
* Instrumentation
* Cellular/GSM/PHS Phones
* Linear Post-Regulators for SMPS
* Pagers Typical Application VIN 1 VIN VOUT 5 TC1070 TC1071 2 TC1187 GND C1 + 1 µF VOU

📥 Download Datasheet

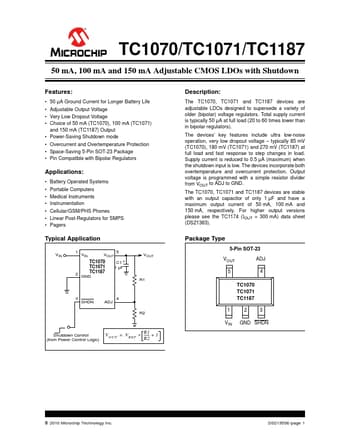

Preview of TC1187 PDF
datasheet Preview Page 2 datasheet Preview Page 3
