TC1188 120 mA Linear Regulators

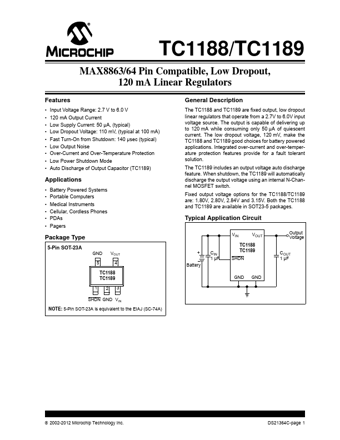

📥 Download Datasheet  Datasheet Preview Page 1

Description

TC1188/TC1189 MAX8863/64 Pin Compatible, Low Dropout, 120 mA Linear Regulators .
The TC1188 and TC1189 are fixed output, low dropout linear regulators that operate from a 2.

📥 Download Datasheet

Preview of TC1188 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Input Voltage Range: 2.7 V to 6.0 V
* 120 mA Output Current
* Low Supply Current: 50 µA, (typical)
* Low Dropout Voltage: 110 mV, (typical at 100 mA)
* Fast Turn-On from Shutdown: 140 µsec (typical)
* Low Output Noise
* Over-Current and Over-

Applications

* Battery Powered Systems
* Portable Computers
* Medical Instruments
* Cellular, Cordless Phones
* PDAs
* Pagers Package Type 5-Pin SOT-23A GND 5 VOUT 4 TC1188 TC1189 1 23 SHDN GND VIN NOTE: 5-Pin SOT-23A is equivalent to the EIAJ (SC-74A) Genera
