MT48LC16M16A2 Datasheet PDF - Micron Technology Automotive SDR SDRAM Specs

MT48LC16M16A2 - Automotive SDR SDRAM

Datasheet Summary

Features

Automotive SDR SDRAM MT48LC64M4A2.
16 Meg x 4 x 4 banks MT48LC32M8A2.
8 Meg x 8 x 4 banks MT48LC16M16A2.
4 Meg x 16 x 4 banks Features.
PC100- and PC133-compliant.
Fully synchronous; all signals registered on positive edge of system clock.
Internal, pipelined operation; column address can be changed every clock cycle.
Internal banks for hiding row access/precharge.
Programmable burst lengths: 1, 2, 4, 8, or full page.

Datasheet Details

Part number	MT48LC16M16A2
Manufacturer	Micron Technology
File Size	1.02 MB
Description	Automotive SDR SDRAM
Datasheet	MT48LC16M16A2 Datasheet
Additional preview pages of the MT48LC16M16A2 datasheet.

📁 Similar Datasheet

MT48LC1M16A1 - SYNCHRONOUS DRAM (Micron)

MT48LC2M32B2 - SDR SDRAM (MICRON)

MT48LC2M8A - SYNCHRONOUS DRAM (MICRON)

MT4832 - 30V 10A Dual N-Channel MOSFET (MT Semiconductor)

MT4067-P - 256K x 1 DRAM (Micron)

MT40A1G16 - 1.2V DDR4 SDRAM (Micron)

MT40A1G4 - DDR4 SDRAM (Micron)

MT40A1G8 - DDR4 SDRAM (Micron)

MT40A256M16 - Automotive DDR4 SDRAM (Micron)

MT40A2G4 - DDR4 SDRAM (Micron)

Full PDF Text Transcription

Click to expand full text

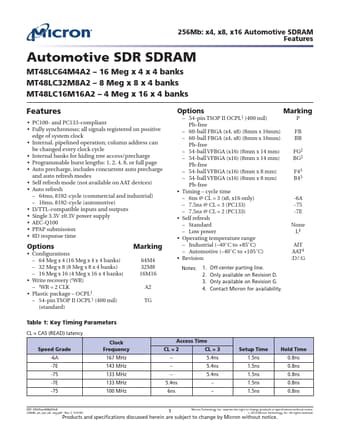

256Mb: x4, x8, x16 Automotive SDRAM Features Automotive SDR SDRAM MT48LC64M4A2 – 16 Meg x 4 x 4 banks MT48LC32M8A2 – 8 Meg x 8 x 4 banks MT48LC16M16A2 – 4 Meg x 16 x 4 banks Features • PC100- and PC133-compliant • Fully synchronous; all signals registered on positive edge of system clock • Internal, pipelined operation; column address can be changed every clock cycle • Internal banks for hiding row access/precharge • Programmable burst lengths: 1, 2, 4, 8, or full page • Auto precharge, includes concurrent auto precharge and auto refresh modes • Self refresh mode (not available on AAT devices) • Auto refresh – 64ms, 8192-cycle (commercial and industrial) – 16ms, 8192-cycle (automotive) • LVTTL-compatible inputs and outputs • Single 3.3V ±0.
