MT48LC16M16LFFG Datasheet PDF - Micron Technology 256M x 16 Mobile SDRAM Specs

MT48LC16M16LFFG - 256M x 16 Mobile SDRAM

Datasheet Summary

Description

The 256Mb SDRAM is a high-speed CMOS, dynamic random-access memory containing 268,435,456 bits.

It is internally configured as a quadbank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK).

Features

Temperature Compensated Self Refresh (TCSR).
Fully synchronous; all signals registered on positive edge of system clock.
Internal pipelined operation; column address can be changed every clock cycle.
Internal banks for hiding row access/precharge.
Programmable burst lengths: 1, 2, 4, 8, or full page.
Auto Precharge, includes.

Datasheet Details

Part number	MT48LC16M16LFFG
Manufacturer	Micron Technology
File Size	1.65 MB
Description	256M x 16 Mobile SDRAM
Datasheet	MT48LC16M16LFFG Datasheet
Additional preview pages of the MT48LC16M16LFFG datasheet.

📁 Similar Datasheet

MT48LC1M16A1 - SYNCHRONOUS DRAM (Micron)

MT48LC2M32B2 - SDR SDRAM (MICRON)

MT48LC2M8A - SYNCHRONOUS DRAM (MICRON)

MT4832 - 30V 10A Dual N-Channel MOSFET (MT Semiconductor)

MT4067-P - 256K x 1 DRAM (Micron)

MT40A1G16 - 1.2V DDR4 SDRAM (Micron)

MT40A1G4 - DDR4 SDRAM (Micron)

MT40A1G8 - DDR4 SDRAM (Micron)

MT40A256M16 - Automotive DDR4 SDRAM (Micron)

MT40A2G4 - DDR4 SDRAM (Micron)

Full PDF Text Transcription

Click to expand full text

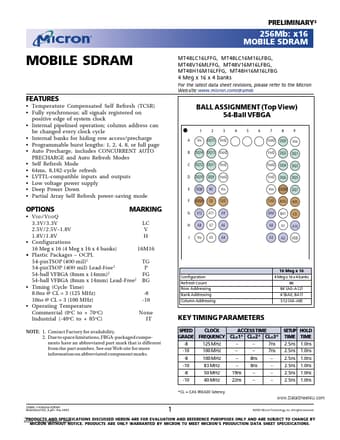

PRELIMINARY‡ 256Mb: x16 MOBILE SDRAM MOBILE SDRAM FEATURES • Temperature Compensated Self Refresh (TCSR) • Fully synchronous; all signals registered on positive edge of system clock • Internal pipelined operation; column address can be changed every clock cycle • Internal banks for hiding row access/precharge • Programmable burst lengths: 1, 2, 4, 8, or full page • Auto Precharge, includes CONCURRENT AUTO PRECHARGE and Auto Refresh Modes • Self Refresh Mode • 64ms, 8,192-cycle refresh • LVTTL-compatible inputs and outputs • Low voltage power supply • Deep Power Down • Partial Array Self Refresh power-saving mode MT48LC16LFFG, MT48LC16M16LFBG, MT48V16MLFFG, MT48V16M16LFBG, MT48H16M16LFFG, MT48H16M16LFBG 4 Meg x 16 x 4 banks For the latest data sheet revisions, please refer to the Micron
