LX5530, Power Amplifier

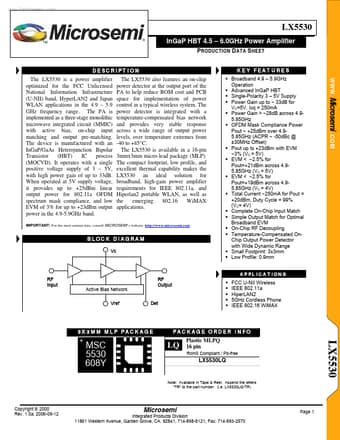

www.DataSheet4U.com LX5530 TM ® InGaP HBT 4.5 * 6.0GHz Power Amplifier P RODUCTION D ATA S HEET .
KEY FEATURES. Broadband 4. 5. Advanced InGaP HBT. Single-Polarity 3. 5V Supply. Power Gain up.

datasheet Preview Page 1 from Datasheet4u.com

LX5530_MicrosemiCorporation.pdf

LX5530 Datasheet Preview — Preview of LX5530 PDF

Datasheet Details

Part number:

LX5530

Manufacturer:

Microsemi ↗ Corporation

File Size:

121.54 KB

Description:

Power Amplifier

Features

* Broadband 4.9
* 5.9GHz Operation
* Advanced InGaP HBT
* Single-Polarity 3
* 5V Supply
* Power Gain up to ~ 33dB for VC=5V, Icq = 250mA
* Power Gain > ~28dB across 4.95.85GHz
* OFDM Mask Compliance Power Pout ~ +25dBm over 4.95.85GHz (ACPR ~ -50dBc @ ±30MHz O

Applications

* The LX5530 is a power amplifier optimized for the FCC Unlicensed National Information Infrastructure (U-NII) band, HyperLAN2 and Japan WLAN applications in the 4.9
* 5.9 GHz frequency range. The PA is implemented as a three-stage monolithic microwave integrated circuit (MMIC) with active bi
