LX5535

InGaP HBT 2.4 - 2.5 GHz Power Amplifier

LX5535 Features

* DESCRIPTION The LX5535 is a power amplifier optimized for WLAN applications in the 2.4-2.5 GHz frequency range. The PA is implemented as a three-stage monolithic microwave integrated circuit (MMIC) with active bias and output pre-matching. The device is manufactured with an InGaP/GaAs Heterojuncti

LX5535 General Description

The LX5535 is a power amplifier optimized for WLAN applications in the 2.4-2.5 GHz frequency range. The PA is implemented as a three-stage monolithic microwave integrated circuit (MMIC) with active bias and output pre-matching. The device is manufactured with an InGaP/GaAs Heterojunction Bipolar Tr.

LX5535 Datasheet (107.68 KB)

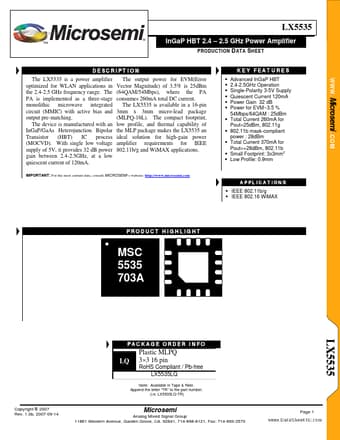

Preview of LX5535 PDF

Datasheet Details

Part number:

LX5535

Manufacturer:

Microsemi ↗ Corporation

File Size:

107.68 KB

Description:

Ingap hbt 2.4 - 2.5 ghz power amplifier.
