LX7201

EMI Filter and ESD Protection

LX7201 Features

* Bi-directional EMI/RFI Low-Pass Filter Line Termination with Integrated ESD Protection Low TVS Operating Voltage (5.25V) Low Leakage Current Integrated Single Die Construction Available With 15 or 22Ω Series Resistance Crosses from Semtech STF201 APPLICATION

LX7201 General Description

The LX7201 is an integrated Universal Serial Bus (USB) line termination device with an EMI filter and ESD protection diodes. This device offers a cost effective and compact solution for one USB downstream port. The USB specification requires line termination resistors on both the D+ and D- lines. T.

LX7201 Datasheet (374.38 KB)

Preview of LX7201 PDF

Datasheet Details

Part number:

LX7201

Manufacturer:

Microsemi ↗ Corporation

File Size:

374.38 KB

Description:

Emi filter and esd protection.

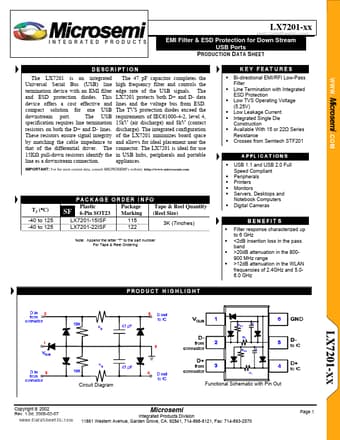

www.DataSheet4U.com LX7201-xx I N T E G R A T E D P R O D U C T S EMI Filter & ESD Protection for Down Stream USB Ports P RODUCTION D ATA S HEET K.
