LX7203

EMI Filter and ESD Protection

LX7203 Features

* Small SC70-6L Package Bi-directional EMI/RFI low-pass filter Line termination with integrated ESD protection Low TVS operating voltage (5.25V) Low leakage current Integrated single die construction Crosses From Semtech STF203 APPLICATIONS DESCRIPTION The LX7203 is an integrated Universal Serial Bu

LX7203 General Description

The LX7203 is an integrated Universal Serial Bus (USB) line termination device with an EMI filter and ESD protection diodes. This device offers a cost effective and compact solution for one USB upstream port. The USB v1.1 specification requires line termination resistors on both the D+ and D- lines.

LX7203 Datasheet (331.34 KB)

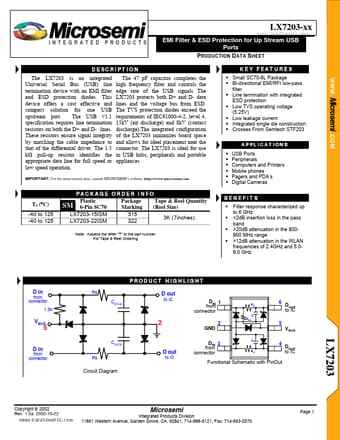

Preview of LX7203 PDF

Datasheet Details

Part number:

LX7203

Manufacturer:

Microsemi ↗ Corporation

File Size:

331.34 KB

Description:

Emi filter and esd protection.
www.DataSheet4U.com LX7203-xx I N T E G R A T E D P R O D U C T S EMI Filter & ESD Protection for Up Stream USB Ports P RODUCTION D ATA S HEET KEY.
