LX7205 - Integrated EMI Filters and ESD Protection

LX7205 Description

LX7205 TM ® Integrated EMI Filter & ESD Protection For www.DataSheet4U.com Earpiece Speaker Ports P RODUCTION D ATA S HEET .
KEY FEATURES. Flip Chip construction. Bi-directional EMI/RFI low-pass filter. ESD protection with integrated line termination resistor.

LX7205 Features

* Flip Chip construction
* Bi-directional EMI/RFI low-pass filter
* ESD protection with integrated line termination resistor

LX7205 Applications

* Low TVS operating voltage (5.0V)
* Low leakage current
* 0.5mm Pitch Chip Scale Package designed for direct assembly on FR4 PCB using conventional assembly techniques APPLICATIONS Proliferation of digital portable electronic equipment has created a noisy environment in which all devic

📥 Download Datasheet

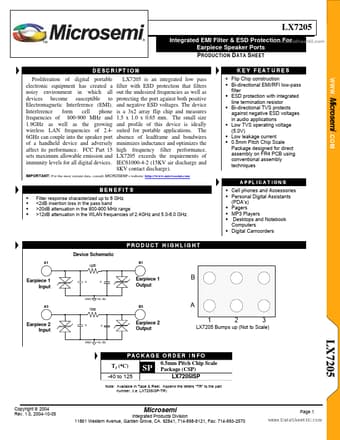

Preview of LX7205 PDF
