LX7167

2.4A Step Down Converter

LX7167 Features

* Operational Input Supply Voltage Range: 3V - 5.5V BENEFITS Ideal for 3.3V and 5V applications Increases speed providing ultra fast transient response

* Patented Hysteretic Control Technology

* Load Current from 0 to 2A Eliminates loop error amplifier and compensation network delay M

LX7167 General Description

High efficiency, ultra fast transient response regulator for mobile technology and System-OnChip (SOC) processor applications LX7167™ is a step-down PWM switching regulator IC with integrated high side P-Channel and low side N-Channel MOSFETs. The IC operates using a proprietary hysteretic control t.

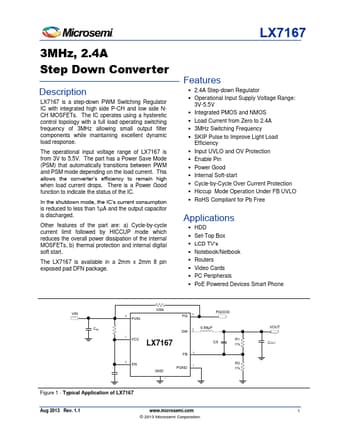

LX7167 Datasheet (563.46 KB)

Preview of LX7167 PDF

Datasheet Details

Part number:

LX7167

Manufacturer:

Microsemi ↗

File Size:

563.46 KB

Description:

2.4a step down converter.
