LX7206

Integrated EMI Filter and ESD Protection

LX7206 Features

* Flip Chip construction

* Bi-directional EMI/RFI low-pass filter

* ESD protection with integrated line termination resistor

* Bi-directional TVS protects against negative ESD voltages in audio applications

* Low TVS operating voltage (5.0V)

* Low leakage current

* 0.5mm

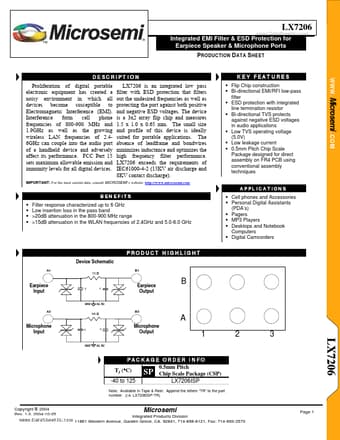

LX7206 Datasheet (235.57 KB)

Preview of LX7206 PDF

Datasheet Details

Part number:

LX7206

Manufacturer:

Microsemi ↗ Corporation

File Size:

235.57 KB

Description:

Integrated emi filter and esd protection.
