LX7202 Datasheet - Microsemi Corporation

LX7202 EMI Filter and ESD Protection

The LX7202 is an integrated Universal Serial Bus (USB) line termination device with an EMI filter and ESD protection diodes. This device offers a cost effective and compact solution for one USB upstream port. The USB specification requires line termination resistors on both the D+ and D- lines. The.

LX7202 Features

* Bi-directional EMI/RFI low-pass filter

* Line termination with integrated ESD protection

* Low TVS operating voltage (5.25V)

* Low leakage current

* Integrated single die construction

* Available with 15 or 22Ω Series Resistance

* Crosses from Semtech STF202 APPLICATION

LX7202_MicrosemiCorporation.pdf

Preview of LX7202 PDF

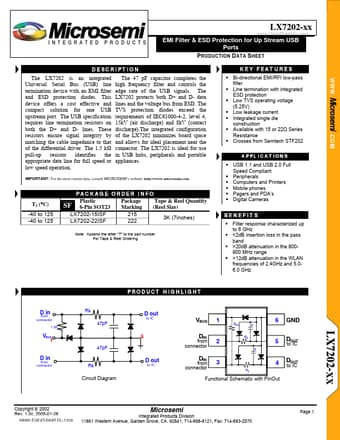

LX7202 Datasheet Preview Page 2 LX7202 Datasheet Preview Page 3

Datasheet Details

Part number:

LX7202

Manufacturer:

Microsemi ↗ Corporation

File Size:

304.13 KB

Description:

Emi filter and esd protection.
