LX7178 - 5A Constant Frequency Hysteretic Synchronous Buck Regulator

LX7178 Description

LX7178 3V to 5.5V, 5A Constant Frequency Hysteretic Synchronous Buck Regulator with I2C Production Datasheet .
Features The LX7178 is a digitally controlled step-down regulator IC with an integrated 40mΩ high-side P-channel MOSFET and a 14mΩ low-side N-channe.

LX7178 Features

* The LX7178 is a digitally controlled step-down regulator IC with an integrated 40mΩ high-side P-channel MOSFET and a 14mΩ low-side N-channel MOSFET. It features Microsemi’s proprietary constant-frequency hysteretic control engine for near-instantaneous correction to line/load transients. It does no

LX7178 Applications

* The LX7178 has an I2C serial interface port for output voltage margining and monitoring if required (it can also operate in default mode). In addition it includes robust fault monitoring functions. The LX7178 will operate from 3V to 5.5V, and is available in 0.8V fixed output voltage option (no vol

📥 Download Datasheet

Preview of LX7178 PDF

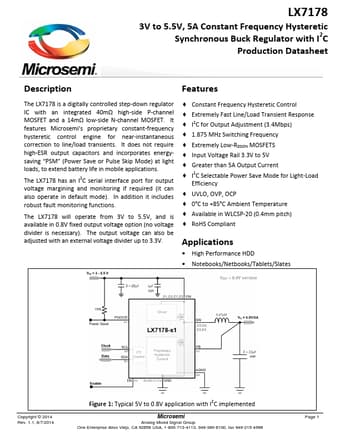

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LX7178
Manufacturer
Microsemi ↗
File Size
1.53 MB
Datasheet
LX7178-Microsemi.pdf
Description
5A Constant Frequency Hysteretic Synchronous Buck Regulator
