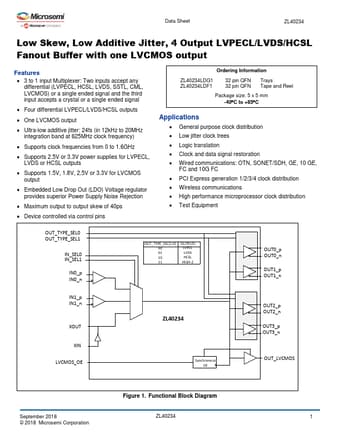

ZL40234 Datasheet, Buffer, Microsemi

✔ ZL40234 Features

3 to 1 input Multiplexer: Two inputs accept any differential (LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS) or a single ended signal and the third input accepts a crystal or a

✔ ZL40234 Application

General purpose clock distribution
Low jitter clock trees
Logic translation
Clock and data signal re

PDF File Details

Microsemi manufacturer logo

Part number:

ZL40234

Manufacturer:

Microsemi ↗

File Size:

1.64MB

Download:

📄 Datasheet

Description:

Low additive jitter 4 output lvpecl/lvds/hcsl fanout buffer. 6 Functional Description 8 Clock Inputs 8 Clock Outputs 11 Crystal Oscillator Input 12 Termination of unused inputs and outputs

📥 Download PDF (1.64MB)

Rating: 1 ★ (3 votes)
