CGB7001-SC MMIC or Packaged Matched Gain Block Amplifier

The CGB7001-SC (-BD) is a Darlington Configured, high dynamic range, utility gain block amplifier. Designed for applications operating within the DC to 6.0 GHz frequency range, Mimix’s broadband, cascadable, gain block amplifiers are ideal solutions for transmit, receive and IF applications. These .

CGB7001-SC Features

* Low Operating Voltage: 5V 28.0 dBm Output IP3 @ 850 MHz 3.3 dB Noise Figure @ 850 MHz 20.5 dB Gain @ 850 MHz 14.2 dBm P1dB @ 850 MHz Low Performance Variation Over Temperature Low Cost: Die Form or SOT-89 Package 100% DC On-Wafer Testing ESD Protection on All Die: >1000V HBM Low Thermal Resistance:

CGB7001-BD_MimixBroadband.pdf

This datasheet PDF includes multiple part numbers: CGB7001-SC, CGB7001-BD. Please refer to the document for exact specifications by model.

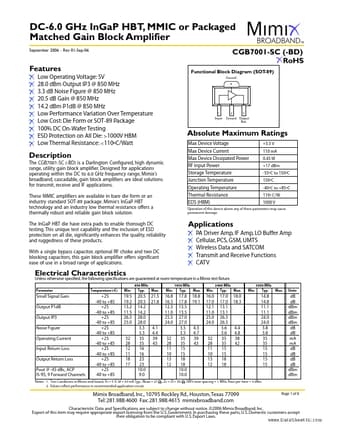

CGB7001-SC Datasheet Preview Page 2 CGB7001-SC Datasheet Preview Page 3

Datasheet Details

Part number:

CGB7001-SC, CGB7001-BD

Manufacturer:

Mimix Broadband

File Size:

753.28 KB

Description:

Mmic or packaged matched gain block amplifier.

Note:

This datasheet PDF includes multiple part numbers: CGB7001-SC, CGB7001-BD.
Please refer to the document for exact specifications by model.
