CGB7003-BD - InGaP HBT MMIC Matched Gain Block Amplifier

CGB7003-BD Description

DC-6.0 GHz InGaP HBT MMIC Matched Gain Block Amplifier April 2007 - Rev 02-Apr-07 CGB7003-BD .
The CGB7003-BD is a Darlington Configured, high dynamic range, utility gain block amplifier.

CGB7003-BD Features

* Low Operating Voltage: 5V 31.5 dBm Output IP3 @ 850 MHz 2.9 dB Noise Figure @ 850 MHz 20.7 dB Gain @ 850 MHz 16.6 dBm P1dB @ 850 MHz Low Performance Variation Over Temperature 100% DC On-Wafer Testing ESD Protection on All Die: >1000V HBM Low Thermal Resistance:

CGB7003-BD Applications

* operating within the DC to 6.0 GHz frequency range, Mimix’s broadband, cascadable, gain block amplifiers are ideal solutions for transmit, receive and IF applications. These MMIC amplifiers are available in bare die form. Mimix's InGaP HBT technology and an industry low thermal resistance offers a t

📥 Download Datasheet

Preview of CGB7003-BD PDF

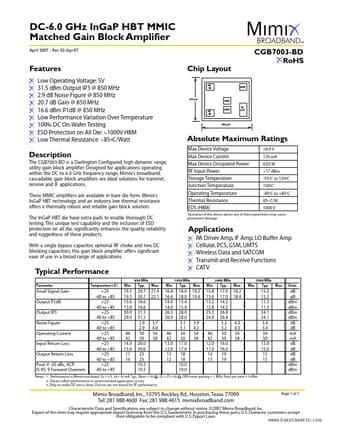

datasheet Preview Page 2 datasheet Preview Page 3
