CGB7004-SC - InGaP HBT MMIC Matched Gain Block Amplifier

Product Overview

Mimix Broadband

📥 Download Datasheet

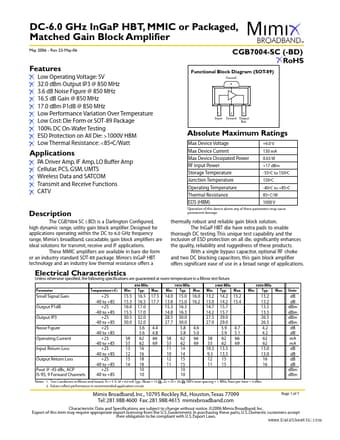

CGB7004-SC InGaP HBT MMIC Matched Gain Block Amplifier by Mimix Broadband - Datasheet Preview — Datasheet preview – CGB7004-SC

Datasheet Details

Part number	CGB7004-SC
Manufacturer	Mimix Broadband
File Size	527.09 KB
Description	InGaP HBT MMIC Matched Gain Block Amplifier
Datasheet	CGB7004-SC Datasheet
Additional preview pages of the CGB7004-SC datasheet.

Product details

Description

The CGB7004-SC (-BD) is a Darlington Configured, high dynamic range, utility gain block amplifier.

Features

Low Operating Voltage: 5V 32.0 dBm Output IP3 @ 850 MHz 3.6 dB Noise Figure @ 850 MHz 16.5 dB Gain @ 850 MHz 17.0 dBm P1dB @ 850 MHz Low Performance Variation Over Temperature Low Cost: Die Form or SOT-89 Package 100% DC On-Wafer Testing ESD Protection on All Die: >1000V HBM Low Thermal Resistance:.
