CGB-1089Z Datasheet, Amplifier, Sirenza Microdevices

CGB-1089Z Features

  • Amplifier S21 dB -10 -20
  • S22 Flat Gain Response: 16dB +/- .4dB Excellent Return Loss: 21dB Low Distortion: -77/ -65dBc CTB/CSO Single Fixed 5

PDF File Details

Part number:

CGB-1089Z

Manufacturer:

Sirenza Microdevices

File Size:

191.60kb

Download:

📄 Datasheet

Description:

Single ended ingap/gaas hbt mmic catv amplifier. Sirenza Microdevices’ CGB-1089Z is a high performance InGaP HBT MMIC amplifier utilizing a Darlington configuration with a 75 ohm act

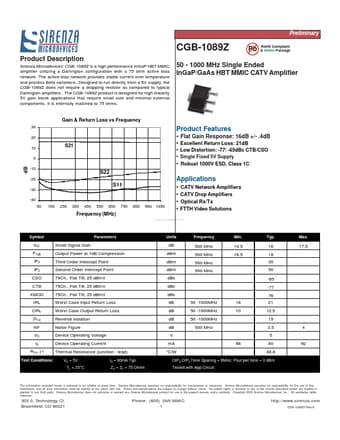

Datasheet Preview: CGB-1089Z 📥 Download PDF (191.60kb)
Page 2 of CGB-1089Z Page 3 of CGB-1089Z

CGB-1089Z Application

  • Applications that require small size and minimal external components. It is internally matched to 75 ohms. Pb RoHS Compliant & Green Package 50 -
