CGB240 - 2-Stage Bluetooth InGaP HBT Power Amplifier

CGB240 Description

CGB 240 Datasheet 2-Stage Bluetooth InGaP HBT Power Amplifier .
The CGB240 GaAs Power Amplifier MMIC has been especially developed for wireless applications in the 2.

CGB240 Features

* Single voltage supply.
* Wide operating voltage range 2.0 - 5.5 V.
* POUT = 23 dBm at VC = 3.2 V.
* Overall power added efficiency (PAE) typically 50%.
* High PAE at low
* power mode.
* Analog power control with four power steps.
* Str

CGB240 Applications

* in the 2.4 - 2.5 GHz ISM band (e. g. Bluetooth class 1). Its high power added efficiency and single positive supply operation makes the device ideally suited to handheld applications. The device delivers 23 dBm output power at a supply voltage of 3.2 V, with an overall PAE of 50%. The output power ca

📥 Download Datasheet

Preview of CGB240 PDF

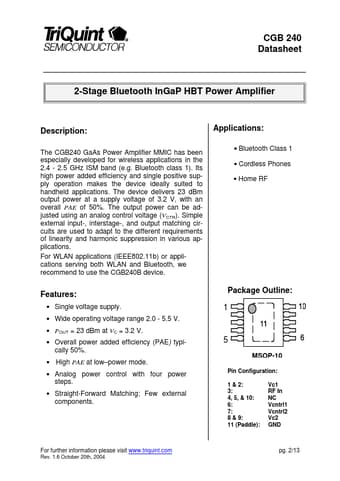

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CGB240
Manufacturer
TriQuint Semiconductor
File Size
320.94 KB
Datasheet
CGB240_TriQuintSemiconductor.pdf
Description
2-Stage Bluetooth InGaP HBT Power Amplifier
