HN16017CG - 10/100 Base-T Single Port Transformer

Product Overview

Mingtek

Part number	HN16017CG
Manufacturer	Mingtek
File Size	204.82 KB
Description	10/100 Base-T Single Port Transformer
Datasheet	HN16017CG Datasheet
Note	This datasheet PDF includes multiple part numbers: HN16017CG, HN16012CG. Please refer to the document for exact specifications by model.

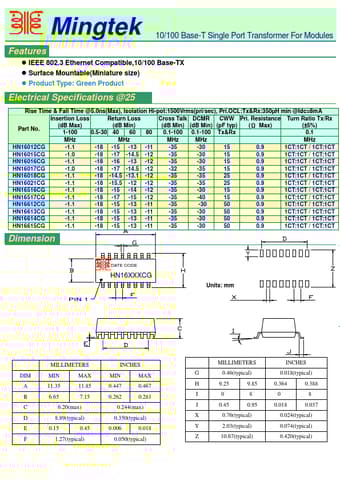

Additional preview pages of the HN16017CG datasheet.

Electrical Specifications @25¢J 10/100 Base-T Single Port Transformer For Modules.
IEEE 802.3 Ethernet Compatible,10/100 Base-TX.
Surface Mountable(Miniature size).
Product Type: Green Product Rise Time & Fall Time @5.0ns(Max), Isolation Hi-pot:1500Vrms(pri/sec), Pri. OCL:Tx&Rx:350µH min @Idc=8mA Insertion Loss Return Loss Cross Talk DCMR CWW Pri. Resistance Turn Ratio Tx/Rx (dB Max) (dB Min) (dB Min) (dB Min) (pF typ) (Ω Max) (±5%) Part No. 1-100 0.5-30 40 60 80 0.1-100 0.1-100.
