QM150DY-H HIGH POWER SWITCHING USE INSULATED TYPE

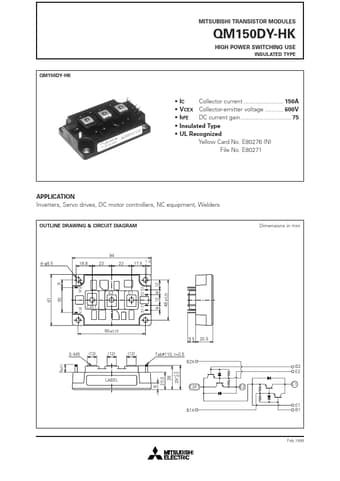

MITSUBISHI TRANSISTOR MODULES QM150DY-HK HIGH POWER SWITCHING USE INSULATED TYPE QM150DY-HK IC Collector current 150A VCEX Collector-emitter voltage 600V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 94 4 φ5.5 18.8 23 23 17.5 1.3 9 C2E1 80±0.25 9.5.

QM150DY-H Datasheet (78.74 KB)

QM150DY-H Datasheet Preview — Preview of QM150DY-H PDF

Datasheet Details

Part number:

QM150DY-H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

78.74 KB

Description:

High power switching use insulated type.
