QM150HY-2H Datasheet - Mitsubishi Electric Semiconductor

QM150HY-2H HIGH POWER SWITCHING USE INSULATED TYPE

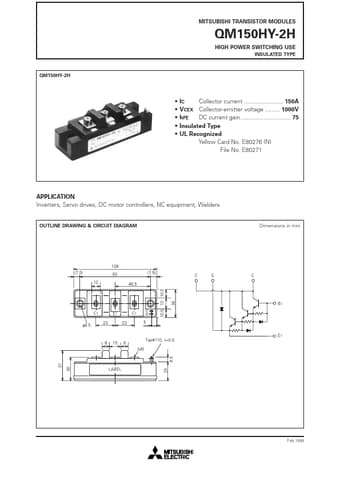

MITSUBISHI TRANSISTOR MODULES QM150HY-2H HIGH POWER SWITCHING USE INSULATED TYPE QM150HY-2H IC Collector current 150A VCEX Collector-emitter voltage 1000V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 108 (7.5) 12 93 46.5 10.5 13 10.5 (7.5) C E C 34 B1 .

QM150HY-2H Datasheet (70.90 KB)

QM150HY-2H Datasheet Preview — Preview of QM150HY-2H PDF

Datasheet Details

Part number:

QM150HY-2H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

70.90 KB

Description:

High power switching use insulated type.
