QM150HY-H HIGH POWER SWITCHING USE INSULATED TYPE

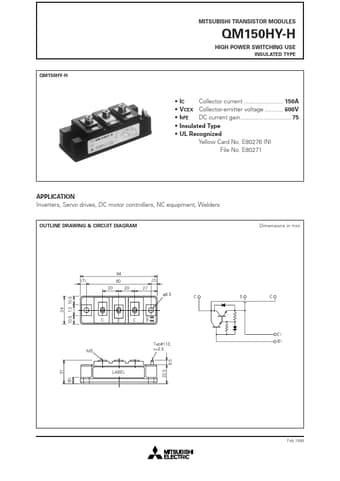

MITSUBISHI TRANSISTOR MODULES QM150HY-H HIGH POWER SWITCHING USE INSULATED TYPE QM150HY-H IC Collector current 150A VCEX Collector-emitter voltage 600V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 94 (7) 20 10.5 13 10.5 80 20 27 (7) φ6.5 C E C 34 C E.

QM150HY-H Datasheet (79.54 KB)

Preview of QM150HY-H PDF
QM150HY-H Datasheet Preview Page 2 QM150HY-H Datasheet Preview Page 3

Datasheet Details

Part number:

QM150HY-H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

79.54 KB

Description:

High power switching use insulated type.
