QM15KD-HB Datasheet - Mitsubishi Electric Semiconductor

QM15KD-HB MEDIUM POWER SWITCHING USE INSULATED TYPE

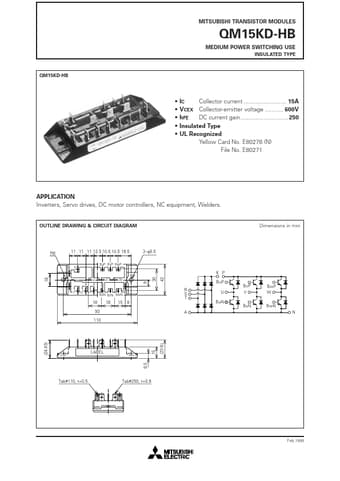

MITSUBISHI TRANSISTOR MODULES QM15KD-HB MEDIUM POWER SWITCHING USE INSULATED TYPE QM15KD-HB IC Collector current 15A VCEX Collector-emitter voltage 600V hFE DC current gain 250 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders. OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm R6 11 11 11 12.5 10.5 10.5 18.5 BuP BvP BwP K P 2

QM15KD-HB_MitsubishiElectricSemiconductor.pdf

Preview of QM15KD-HB PDF
QM15KD-HB Datasheet Preview Page 2 QM15KD-HB Datasheet Preview Page 3

Datasheet Details

Part number:

QM15KD-HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

89.80 KB

Description:

Medium power switching use insulated type.
