QM15TB-2H MEDIUM POWER SWITCHING USE INSULATED TYPE

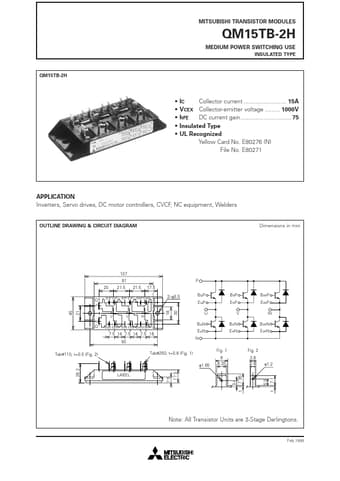

MITSUBISHI TRANSISTOR MODULES QM15TB-2H MEDIUM POWER SWITCHING USE INSULATED TYPE QM15TB-2H IC Collector current 15A VCEX Collector-emitter voltage 1000V hFE DC current gain 75 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, CVCF, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 107 81 20 O P P 21.5 17.5 2 φ5.5 BuP EuP 18 .

QM15TB-2H_MitsubishiElectricSemiconductor.pdf

QM15TB-2H Datasheet Preview — Preview of QM15TB-2H PDF

Datasheet Details

Part number:

QM15TB-2H

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

78.72 KB

Description:

Medium power switching use insulated type.
