QM15TG-9B MEDIUM POWER SWITCHING USE INSULATED TYPE

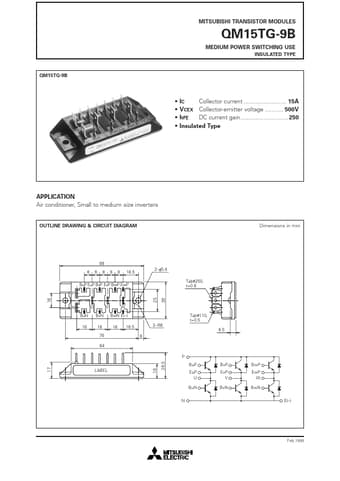

MITSUBISHI TRANSISTOR MODULES QM15TG-9B MEDIUM POWER SWITCHING USE INSULATED TYPE QM15TG-9B IC Collector current 15A VCEX Collector-emitter voltage 500V hFE DC current gain 250 Insulated Type APPLICATION Air conditioner, Small to medium size inverters OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 88 8 8 8 8 8 16.5 2 φ5.4 Tab#250, t=0.8 25 39 BuP EuP BvP EvP BwP EwP P 16 N BuN 16 U BvN 16 76 64 V W BwN E( ) 16 16.5 6 2

QM15TG-9B_MitsubishiElectricSemiconductor.pdf

QM15TG-9B Datasheet Preview — Preview of QM15TG-9B PDF

Datasheet Details

Part number:

QM15TG-9B

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

73.66 KB

Description:

Medium power switching use insulated type.
