QM15TD-HB MEDIUM POWER SWITCHING USE INSULATED TYPE

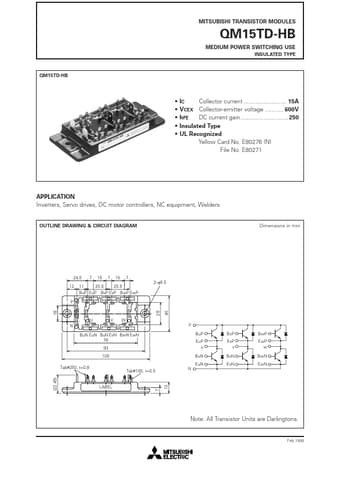

MITSUBISHI TRANSISTOR MODULES QM15TD-HB MEDIUM POWER SWITCHING USE INSULATED TYPE QM15TD-HB IC Collector current 15A VCEX Collector-emitter voltage 600V hFE DC current gain 250 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 24.5 12 7 15 7 15 7 11 25.5 25.5 BuP EuP BvP EvP BwP .

QM15TD-HB_MitsubishiElectricSemiconductor.pdf

QM15TD-HB Datasheet Preview — Preview of QM15TD-HB PDF

Datasheet Details

Part number:

QM15TD-HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

74.17 KB

Description:

Medium power switching use insulated type.
