QM15TB-2HB MEDIUM POWER SWITCHING USE INSULATED TYPE

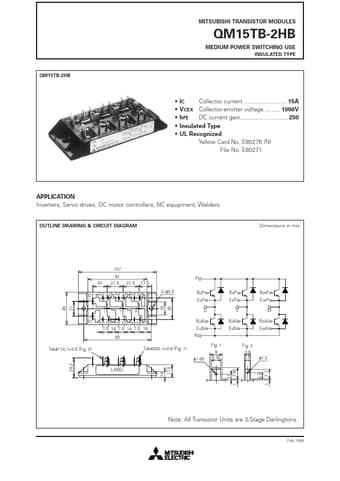

MITSUBISHI TRANSISTOR MODULES QM15TB-2HB MEDIUM POWER SWITCHING USE INSULATED TYPE QM15TB-2HB IC Collector current 15A VCEX Collector-emitter voltage 1000V hFE DC current gain 250 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 107 81 20 O P P 21.5 17.5 2 φ5.5 BuP EuP BvP Ev.

QM15TB-2HB_MitsubishiElectricSemiconductor.pdf

QM15TB-2HB Datasheet Preview — Preview of QM15TB-2HB PDF

Datasheet Details

Part number:

QM15TB-2HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

79.71 KB

Description:

Medium power switching use insulated type.
