QM30HA-HB MEDIUM POWER SWITCHING USE INSULATED TYPE

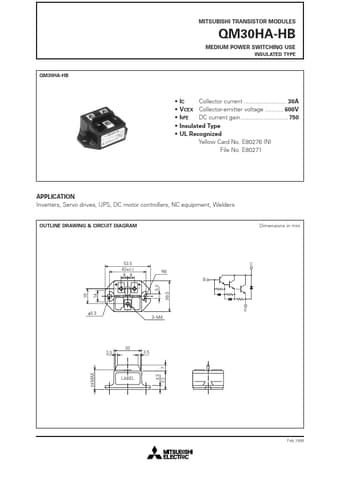

MITSUBISHI TRANSISTOR MODULES QM30HA-HB MEDIUM POWER SWITCHING USE INSULATED TYPE QM30HA-HB IC Collector current 30A VCEX Collector-emitter voltage 600V hFE DC current gain 750 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Inverters, Servo drives, UPS, DC motor controllers, NC equipment, Welders OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 53.5 43±0.2 8 8 B E C R6 B 5.3 36.5 18 14 φ5.3 C .

QM30HA-HB_MitsubishiElectricSemiconductor.pdf

QM30HA-HB Datasheet Preview — Preview of QM30HA-HB PDF

Datasheet Details

Part number:

QM30HA-HB

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

68.67 KB

Description:

Medium power switching use insulated type.
