QM30HQ-24 DRIVE USE FOR HIGH POWER TRANSISTOR INSULATED TYPE

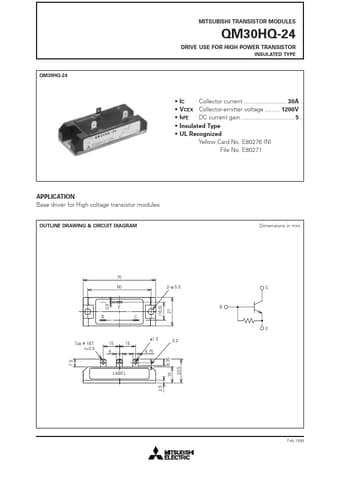

MITSUBISHI TRANSISTOR MODULES QM30HQ-24 DRIVE USE FOR HIGH POWER TRANSISTOR INSULATED TYPE QM30HQ-24 IC Collector current 30A VCEX Collector-emitter voltage 1200V hFE DC current gain 5 Insulated Type UL Recognized Yellow Card No. E80276 (N) File No. E80271 APPLICATION Base driver for High voltage transistor modules OUTLINE DRAWING & CIRCUIT DIAGRAM Dimensions in mm 70 60 2 φ 5.5 C 0.8 B C 27 E (16.5) B E φ1.3 Tab # 187, .

QM30HQ-24_MitsubishiElectricSemiconductor.pdf

QM30HQ-24 Datasheet Preview — Preview of QM30HQ-24 PDF

Datasheet Details

Part number:

QM30HQ-24

Manufacturer:

Mitsubishi Electric Semiconductor

File Size:

45.82 KB

Description:

Drive use for high power transistor insulated type.
