M1MA141WKT1 Datasheet - Motorola Inc

M1MA141WKT1 SC-70/SOT-323 PACKAGE COMMON CATHODE DUAL SWITCHING DIODE 40/80 V-100 mA SURFACE MOUNT

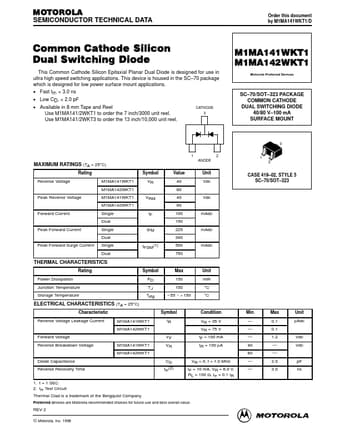

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by M1MA141WKT1/D Common Cathode Silicon Dual Switching Diode This Common Cathode Silicon Epitaxial Planar Dual Diode is designed for use in ultra high speed switching applications. This device is housed in the SC 70 package which is designed for low power surface mount applications. Fast trr, < 3.0 ns Low CD, < 2.0 pF Available in 8 mm Tape and Reel Use M1MA141/2WKT1 to order the 7 inch/3000 unit r.

M1MA141WKT1 Features

* entation or guarantee regarding the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any prod

M1MA141WKT1 Datasheet (99.20 KB)
