M1MA141WA Datasheet - MSV

M1MA141WA Common Anode Silicon Dual Switching Diode

MSV SEMI M1MA141,142WA Common Anode Silicon Dual Switching Diode This Common Anode Silicon Epitaxial Planar Dual Diode is designed for use in ultra high speed switching applications. This device is housed in the SC 70 package which is designed for low power surface mount applications. z Fast trr, < 10 ns z Low CD, < 15 pF z We declare that the material of product compliance with RoHS requirements. z S- Prefix for Automotive and Other Applications Requiring Unique Site.

M1MA141WA Datasheet (98.63 KB)

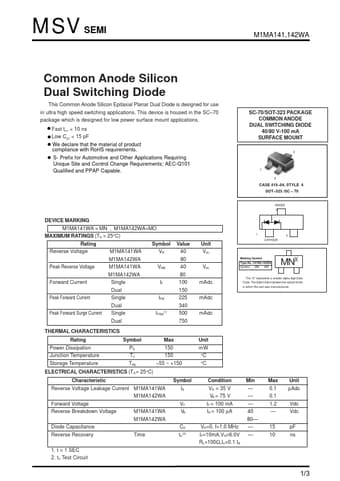

Preview of M1MA141WA PDF
M1MA141WA Datasheet Preview Page 2 M1MA141WA Datasheet Preview Page 3

Datasheet Details

Part number:

M1MA141WA

Manufacturer:

MSV

File Size:

98.63 KB

Description:

Common anode silicon dual switching diode.
