M1MA142WK, M1MA141WK - Common Cathode Silicon Dual Switching Diode

M1MA142WK Description

MSV SEMI Common Cathode Silicon Dual Switching Diode This Common Cathode Silicon Epitaxial Planar Dual Diode is designed for use in ultra high speed.

M1MA142WK Applications

* This device is housed in the SC-70 package which is designed for low power surface mount applications. z
* Fast t, rr < 3.0 ns z
* Low C, D < 2.0 pF z We declare that the material of product compliance with RoHS requirements. z S- Prefix for Automotive and Other Applica

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M1MA142WK, M1MA141WK. Please refer to the document for exact specifications by model.

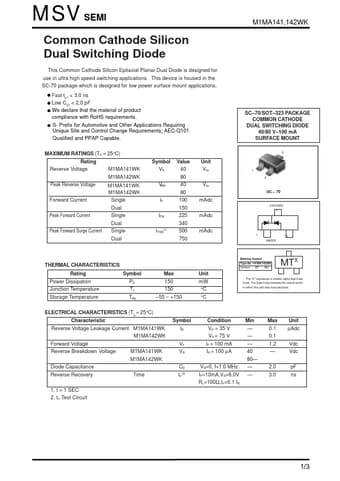

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M1MA142WK, M1MA141WK
Manufacturer
MSV
File Size
251.25 KB
Datasheet
M1MA141WK-MSV.pdf
Description
Common Cathode Silicon Dual Switching Diode
Note
This datasheet PDF includes multiple part numbers: M1MA142WK, M1MA141WK.
Please refer to the document for exact specifications by model.
