M1MA142WAT1G, M1MA141WAT1G - Common Anode Silicon Dual Switching Diode

M1MA142WAT1G Description

M1MA141WAT1G, M1MA142WAT1G, SM1MA142WAT1G Common Anode Silicon Dual Switching Diode This Common Anode Silicon Epitaxial Planar Dual Diode is designed.

M1MA142WAT1G Features

* Fast trr, < 10 ns
* Low CD, < 15 pF
* AEC
* Q101 Qualified and PPAP Capable

M1MA142WAT1G Applications

* This device is housed in the SC

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M1MA142WAT1G, M1MA141WAT1G. Please refer to the document for exact specifications by model.

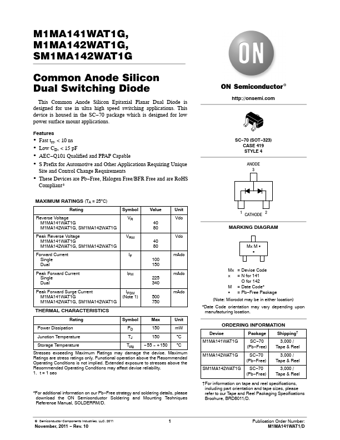

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M1MA142WAT1G, M1MA141WAT1G
Manufacturer
ON Semiconductor ↗
File Size
118.16 KB
Datasheet
M1MA141WAT1G-ONSemiconductor.pdf
Description
Common Anode Silicon Dual Switching Diode
Note
This datasheet PDF includes multiple part numbers: M1MA142WAT1G, M1MA141WAT1G.
Please refer to the document for exact specifications by model.
