M1MA141KT1G, Single Silicon Switching Diode

M1MA141KT1G, M1MA142KT1G Single Silicon Switching Diode This Silicon Epitaxial Planar Diode is designed for use in ultra high speed switching applica.

datasheet Preview Page 1 from Datasheet4u.com

M1MA141KT1G-ONSemiconductor.pdf

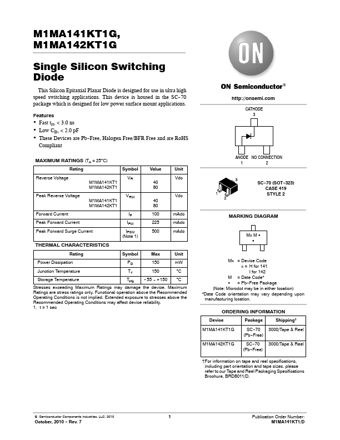

M1MA141KT1G Datasheet Preview — Preview of M1MA141KT1G PDF

Datasheet Details

Part number:

M1MA141KT1G

Manufacturer:

ON Semiconductor ↗

File Size:

115.27 KB

Description:

Single Silicon Switching Diode

Features

* Fast trr, < 3.0 ns
* Low CD, < 2.0 pF
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25C) Rating Symbol Value Unit Reverse Voltage M1MA141KT1 M1MA142KT1 VR Vdc 40 80 Peak Reverse Voltage M1MA141KT1 M1MA142KT1 VRM Vdc

Applications

* This device is housed in the SC
