M1MA141K, M1MA141K-WON - SURFACE MOUNT FAST SWITCHING DIODE

M1MA141K Description

® WON-TOP ELECTRONICS M1MA141K & M1MA142K SURFACE MOUNT FAST SWITCHING DIODE Pb .

M1MA141K Features

* High Conductance
* Fast Switching
* Surface Mount Package Ideally Suited for Automatic Insertion

M1MA141K Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 B Mechanical Data
* Case: SOT-323, Molded Plastic K
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: See Diagram
* Weight: 0.006 grams (approx. )
* Mounting Posit

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M1MA141K, M1MA141K-WON. Please refer to the document for exact specifications by model.

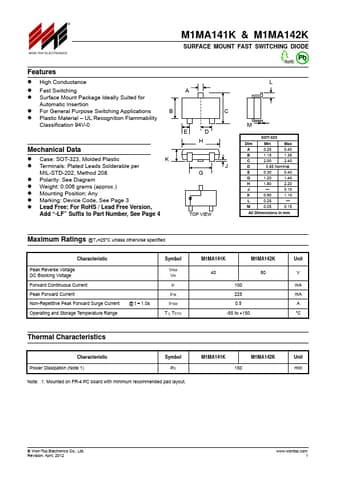

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M1MA141K, M1MA141K-WON
Manufacturer
WON-TOP
File Size
83.67 KB
Datasheet
M1MA141K-WON-TOP.pdf
Description
SURFACE MOUNT FAST SWITCHING DIODE
Note
This datasheet PDF includes multiple part numbers: M1MA141K, M1MA141K-WON.
Please refer to the document for exact specifications by model.
