M1MA141KT1 - SC-70/SOT-323 PACKAGE SINGLE SILICON SWITCHING DIODE 40/80 V-100 mA SURFACE MOUNT

M1MA141KT1 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by M1MA141KT1/D Single Silicon Switching Diode This Silicon Epitaxial Planar Diode is des.

M1MA141KT1 Applications

* This device is housed in the SC
* 70 package which is designed for low power surface mount applications.
* Fast trr, < 3.0 ns
* Low CD, < 2.0 pF
* Available in 8 mm Tape and Reel Use M1MA141/2KT1 to order the 7 inch/3000 unit reel. Use M1MA141/2KT3 to order the 13 inch

📥 Download Datasheet

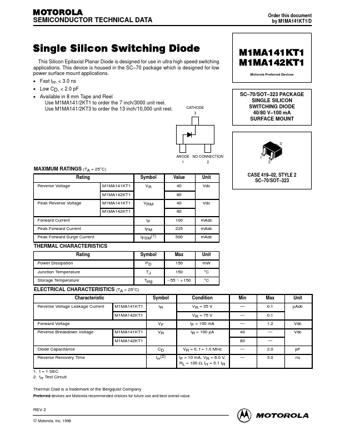

Preview of M1MA141KT1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M1MA141KT1
Manufacturer
Motorola Inc
File Size
95.13 KB
Datasheet
M1MA141KT1_MotorolaInc.pdf
Description
SC-70/SOT-323 PACKAGE SINGLE SILICON SWITCHING DIODE 40/80 V-100 mA SURFACE MOUNT
