M1MA142KT1 Datasheet - Motorola Inc

M1MA142KT1 - SC-70/SOT-323 PACKAGE SINGLE SILICON SWITCHING DIODE 40/80 V-100 mA SURFACE MOUNT

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by M1MA141KT1/D Single Silicon Switching Diode This Silicon Epitaxial Planar Diode is designed for use in ultra high speed switching applications.

This device is housed in the SC 70 package which is designed for low power surface mount applications.

Fast trr, < 3.0 ns Low CD, < 2.0 pF Available in 8 mm Tape and Reel Use M1MA141/2KT1 to order the 7 inch/3000 unit reel.

Use M1MA141/2KT3 to order the

M1MA142KT1 Features

* does Motorola assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation c

M1MA142KT1_MotorolaInc.pdf

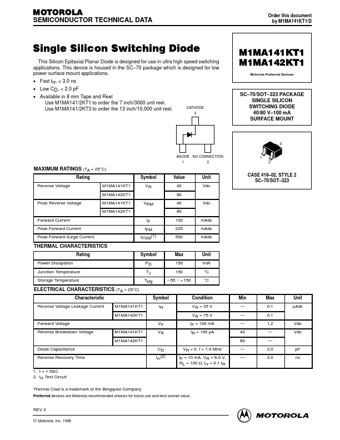

Preview of M1MA142KT1 PDF
M1MA142KT1 Datasheet Preview Page 2 M1MA142KT1 Datasheet Preview Page 3

Datasheet Details

Part number:

M1MA142KT1

Manufacturer:

Motorola Inc

File Size:

95.13 KB

Description:

Sc-70/sot-323 package single silicon switching diode 40/80 v-100 ma surface mount.
