M1MA142WA, M1MA141WA-WON SURFACE MOUNT FAST SWITCHING DIODE

M1MA142WA Description

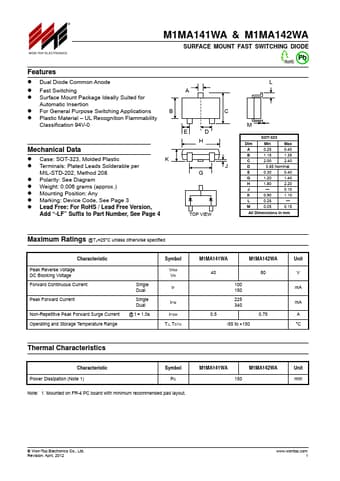

® WON-TOP ELECTRONICS M1MA141WA & M1MA142WA SURFACE MOUNT FAST SWITCHING DIODE Pb .

M1MA142WA Features

* Dual Diode Common Anode
* Fast Switching
* Surface Mount Package Ideally Suited for Automatic Insertion

M1MA142WA Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 B Mechanical Data
* Case: SOT-323, Molded Plastic K
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: See Diagram
* Weight: 0.006 grams (approx. )
* Mounting Posit

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M1MA142WA, M1MA141WA-WON. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M1MA142WA, M1MA141WA-WON
Manufacturer
WON-TOP
File Size
83.97 KB
Datasheet
M1MA141WA-WON-TOP.pdf
Description
SURFACE MOUNT FAST SWITCHING DIODE
Note
This datasheet PDF includes multiple part numbers: M1MA142WA, M1MA141WA-WON.
Please refer to the document for exact specifications by model.
